bieomax

I probably didn't try to go below a 17 teeth above is the plastic prototype from ...2017. If I get some time I'll have a look in the garage over the weekend and dig it out ... but I'm notoriously unreliable so we'll see 😄

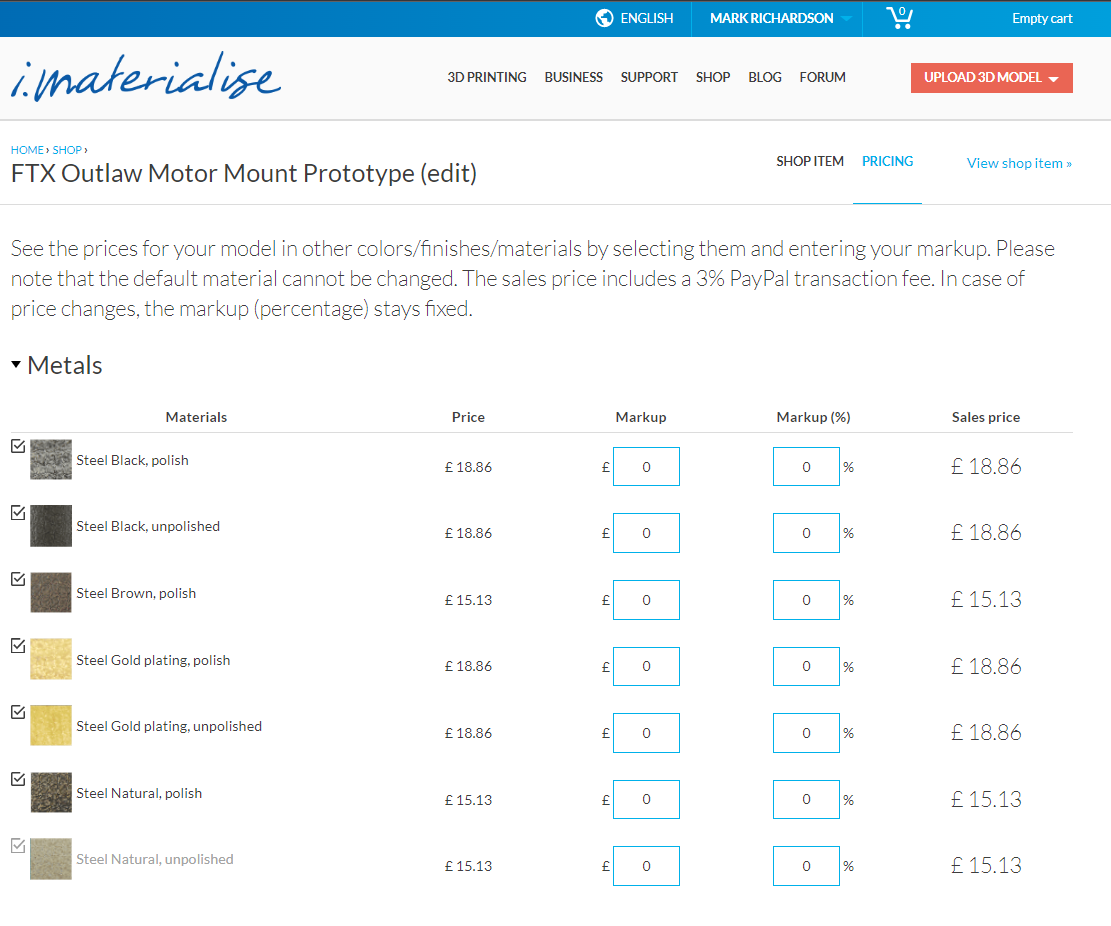

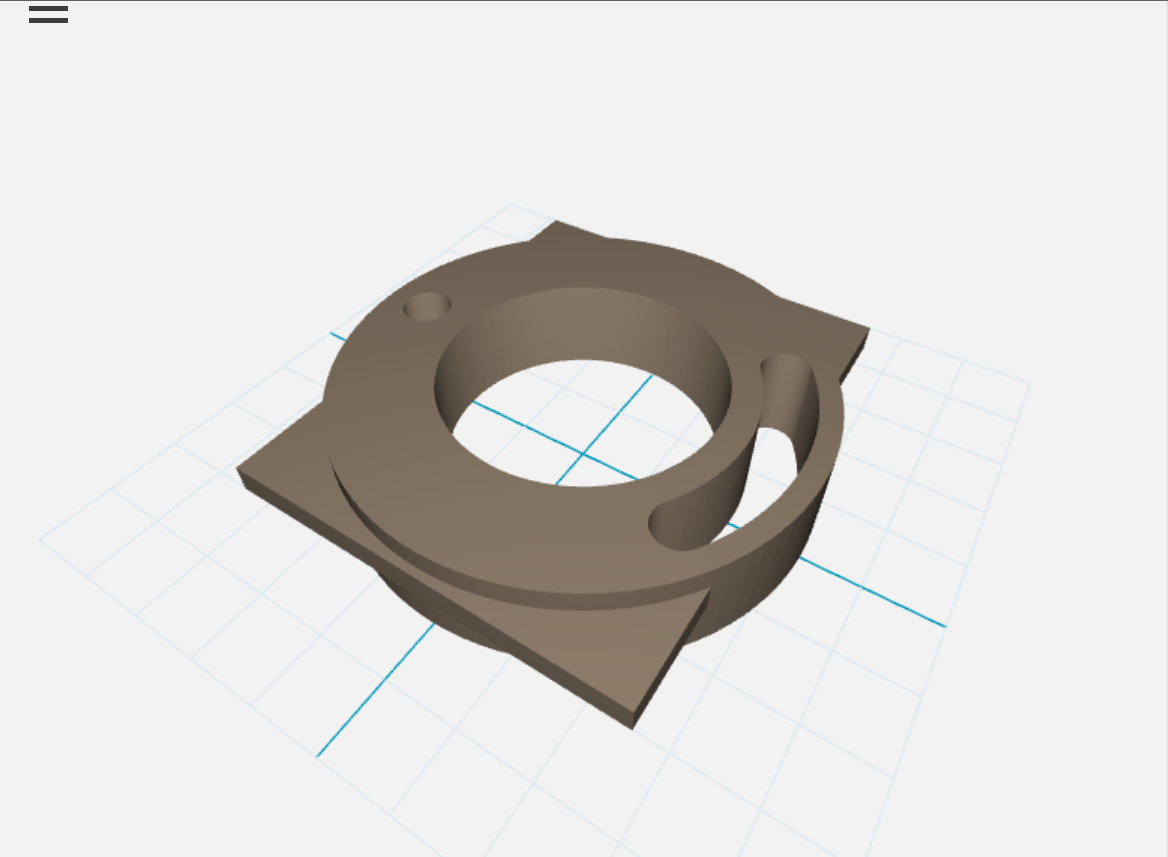

My apologies all, I'd made this years ago now 🙄 I cant be bothered looking through the whole of this tread to see if anyone else made an adjustable mount for the Outlaw So I still cant find the actual STL file for the cad side but noticed the site I used offers a shop function so I've enable it. I've set it to £0 mark up so i aren't making anything from it. Disclaimer is as far as i remember some of the tolerances are a touch tight so if you use this you'll need to potentially file faces of the location lugs (square bits) you may also need to file/drill the screw holes just to very slightly open them. Also i only ordered it in the Steel Natural Unpolished, not sure if the other options again change the dimensions or if they just use a different printing medium. They do offer other materials like aluminium but the cost is alot higher (£46 for a natural aluminium, £75 for a titanium 😲) intended use is to have the elongated hole at the top and rotate the motor on the bottom screw, tighten in line with normal RC pinion/spare setup/spacing processes. material needs to be metal as plastic will deform from the heat of the motor. At some point I will check some old HDD's and publish the cad to a normal sharing site do people can do what they want with it. my apologies again for my slackness Enjoy Mark. https://i.materialise.com/en/shop/search?query=ftx https://i.materialise.com/en/shop/item/ftx-outlaw-motor-mount-prototype/

Thats just down right scary [emoji38] Sent from my SM-G930F using Tapatalk

Started to clean up the Landfreeder after having a great bash on the beach while on holiday. Everything help up fine, barring at one stage the esc went out of config with the controller. Re-set and all is fine. Also randomly lost 1 screw from the front body post.

Ive got the same kit fitted to the landfreeder If you still want some measurements let me know. Sent from my SM-G930F using Tapatalk

Aye it would sound like a weaken motor mount or loose screws if your getting motor movement. Sent from my SM-G930F using Tapatalk

I took general shape measurements from my original plastic one and just created one in designspark mechanical ( free 3d software ) Then uploaded that file to a online 3d printers who can do metal. Ive used a plastic printer at work, but the with this design there isn't enough plastic above the slotted area to handle the heat/forces applied by a motor, which is why it ended up in a metal material. Sent from my SM-G930F using Tapatalk

My design so far Sent from my SM-G930F using Tapatalk

I've got a design for one too, which i had 3d printed in steel ( plastic for the first run but they warped with heat - a few guys here had one, moved to steel as a steel print was £16 opposed to 30+ for aluminium from the site i used ) I got the first one done which needed a slight fettle with a needle file but has worked fine so far. Need to check if i adjusted the 3d/cad file and i'll make available. Sent from my SM-G930F using Tapatalk

I went with gmade gt02 beadlock wheels and the cheap iroc clones that John had posted about Sent from my SM-G930F using Tapatalk

Done a little work today on the Landfreeder, fitted some underframe bling [emoji16] Sent from my SM-G930F using Tapatalk

I'd say yes as the standard is a 550 brushed can. Its only the sensored brushless 550/3660's which are a touch tight as they start getting abit close to the steering. Off the top of my head i think its about 65mm clearance between gearbox and the steering assembly. Sent from my SM-G930F using Tapatalk

Is it normal for a slipper on a trailer/crawler ? or is it just driveline protection as it looked like a 550 can through a reduction box so I'm guess it's got some torque? I do like the look of hobao parts Sent from my SM-G930F using Tapatalk

Fitted the gpm steering kit on the cc01, just need to sort the servo arm now really, kicking myself as i so nearly picked up 3 bags of rod end pairs tonight at the model shop, but put one back Sent from my SM-G930F using Tapatalk

Thanks John, i'll hopefully check it out tonight Sent from my SM-G930F using Tapatalk
