Hi, I’m in real need of help. I’m not an expert as is probably very obvious but I need some advice to get me going. As a kid I did a lot of this with my dad but as time goes by I tried to get back into this as an adult with my son and I’m out of my depth now. I brought a Schumacher icon F1 and assembled the chassis etc... but I just can’t get it wired up. I’ve tried researching as much as I can but I am getting nowhere. I have replaced
the connectors so they all connect now but please tell me what I am doing wrong. Couple of issues:

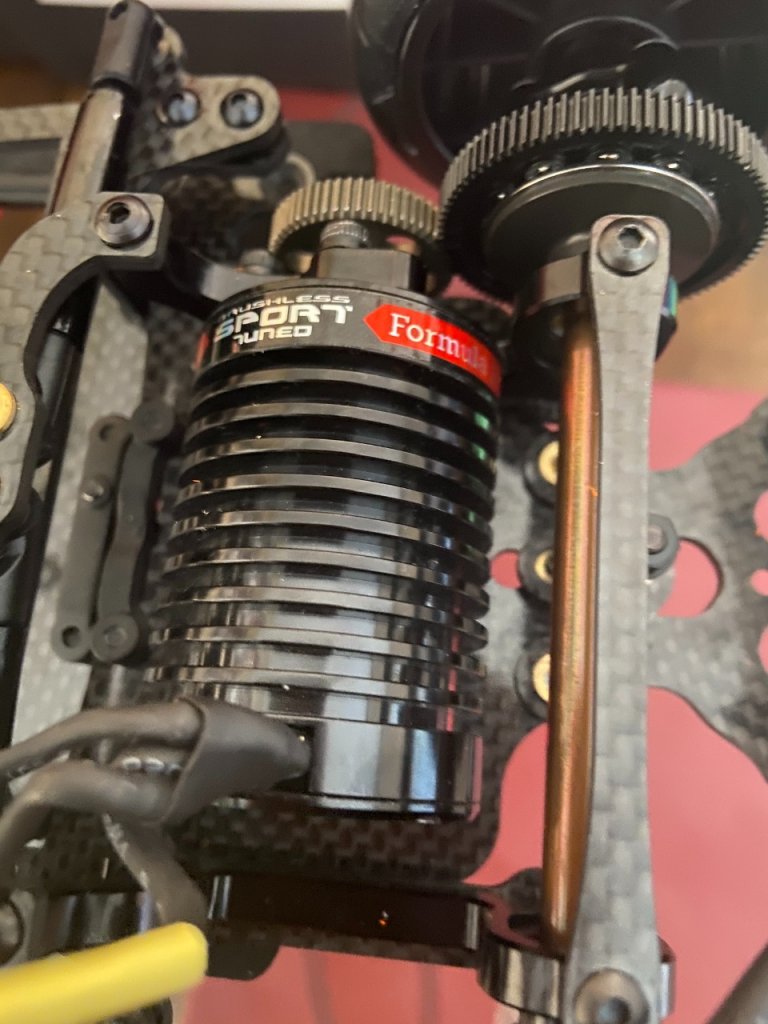

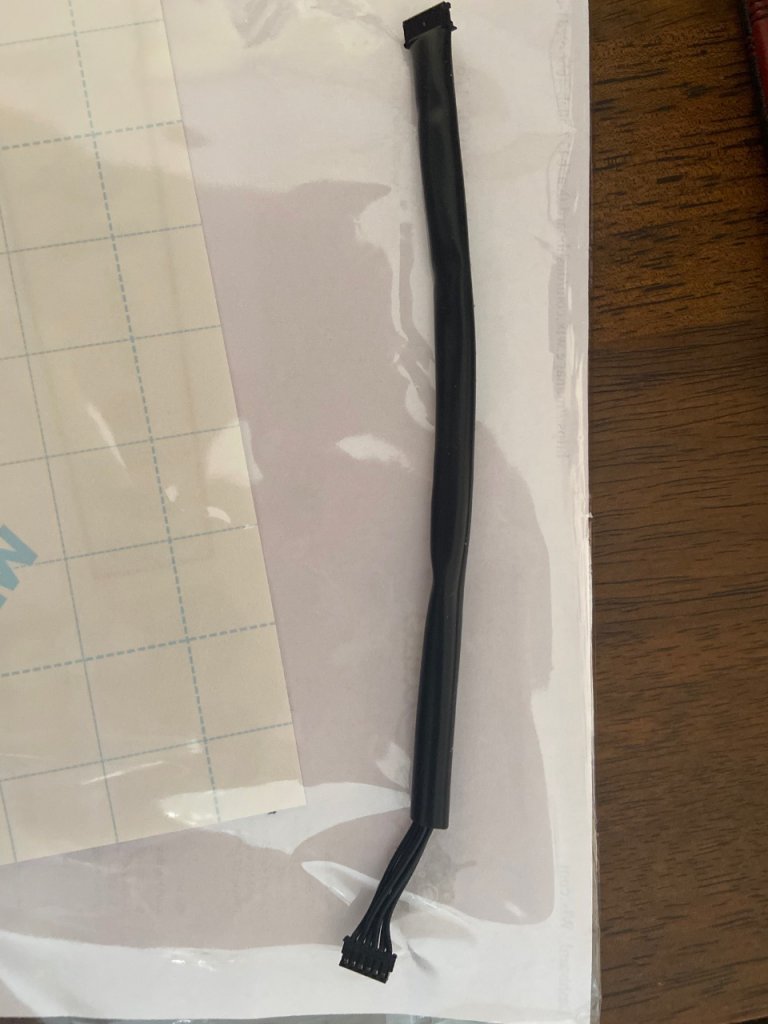

1.) is this how you connect a 2s shorty lipo battery? The white but I use when charging but does it need connecting anywhere on the actual rc car? Also I have a 6 prong motor cable that connects to my esc but my brushless motor has no port for it. Is that right?
2.) when I try to sync my controller up the esc flashes purple, sometimes blue, sometime red. Once I got the controller to operate the servo but now even that’s stoped and the service is locked in place. The motor has never worked though.
3.) Basically I’m in a total mess now and spending hours with no plan or way out. Probably I was a bit stupid trying to do this one first but I’m in it now.
If anyone as any advice on how I can wire this up and sync my controller that would be great, like I said I’ve tried lots but i can’t find any step by steps that apply to what I have
thanks
Carl
