Hi All

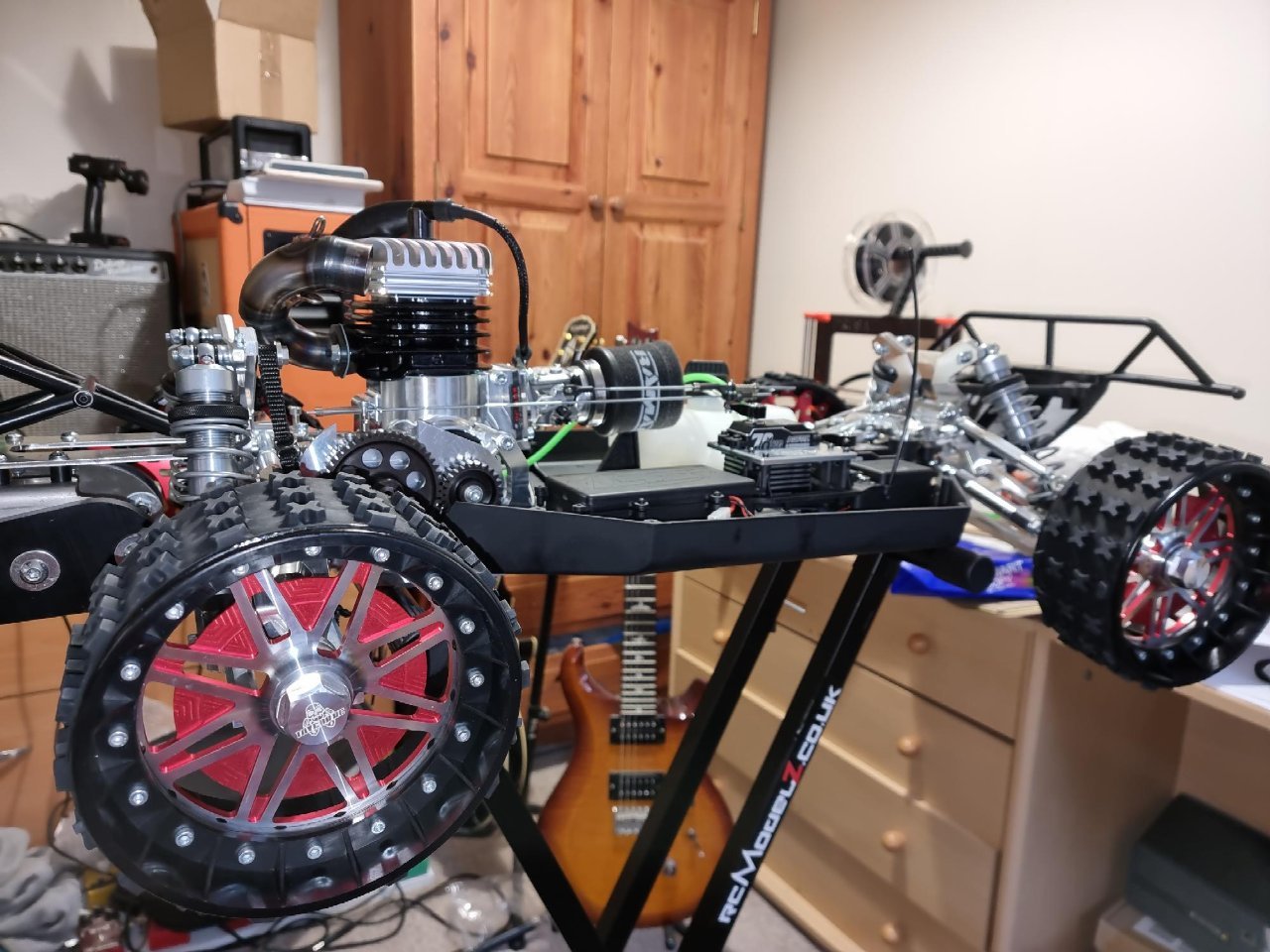

I've started to build a hybrid - I bought a rolling chassis from Taylor RC - his service was really good
BUT - I am concerned about 2 things
The first is the operation of the rear diff - when you turn the rear wheels on the stand with the support straps fitted - the movement is really cogging and you can see the suspension arms moving up and down as you rotate the wheel - I've added a video to show what's happening
I need to know if this is normal or something I should be concerned about - I've not stripped this down it is as delivered, ive installed the engine and wheels up to now
The second issue is the operation of the gears - there is no room for adjustment that I can see on this chassis (without slotting etc), the engine fits where it fits on the base plate and then its also bolted to the various machined parts on the car - so there's no room for movement

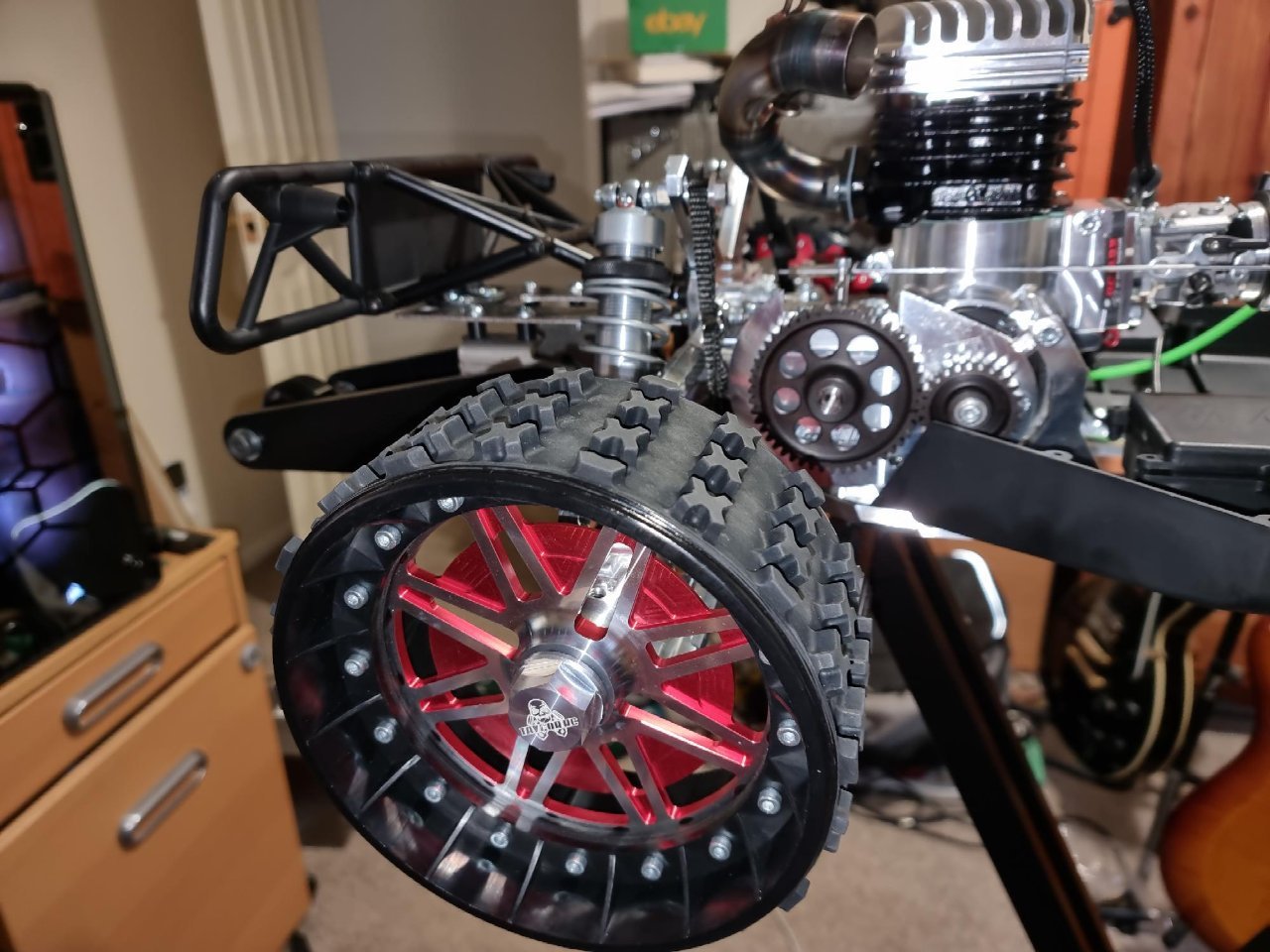

I fitted the motor pinion first and then the larger gear on the input shaft of the rear diff - the mesh seemed perfect until you rotate the gears - there is a tight spot over approx 20 degreees of movement - the other 340 degrees is ok, you can slide the larger gear in and out so there's clearance without it being sloppy - but in the tight area the gear wont move - I'm concerned about the load being applied to the bearings
It's as if the gear is not concentric - any ideas on this - anyone seen anything like it ?
I dont want to do anything further with this build unitl i understand the above
20211224_124346.mp4
